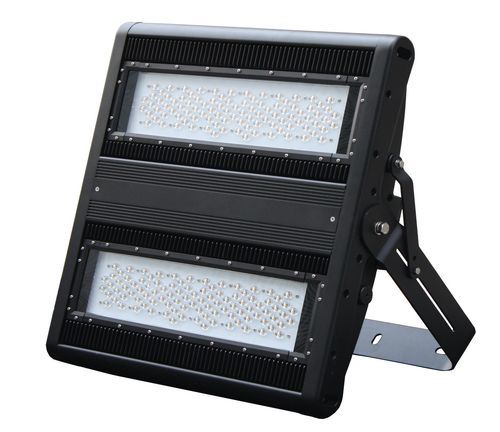

Proiettore IP65 JNFL25-1800S-5000-A4-ND
LEDindustrialeda esterno

Proiettore IP65 - JNFL25-1800S-5000-A4-ND - JNLED - LED / industriale / da esterno
Proiettore IP65 - JNFL25-1800S-5000-A4-ND - JNLED - LED / industriale / da esterno
Proiettore IP65 - JNFL25-1800S-5000-A4-ND - JNLED - LED / industriale / da esterno - immagine - 2
Aggiungi ai preferiti
Confronta con altri prodotti

Caratteristiche

Indice di protezione
IP65
Sorgente luminosa
LED
Applicazioni
industriale
Per interni / per esterni
da esterno
Forma
quadrato
Regolazione della luce
non dimmerabile
Altre caratteristiche
regolabile, di alta intensità, IK07
Altezza

161 mm
(6 in)

Lunghezza

788 mm
(31 in)

Larghezza

665 mm
(26 in)

Potenza

1.800 W
(2,45 hp)

Flusso luminoso

211.000 lm

Temperatura di colore

5.000 K

Indice di resa cromatica (IRC)

Max.: 100 unit

Min.: 70 unit

Descrizione

Breve descrizione
Proiettore LED ad alta resa JNFL25-1800S con 211000 lm, LED Philips Lumileds e driver Meanwell HLG-1000H. Potenza di sistema 1800 W, consumo 1700 W. 5000 K (bianco freddo), fascio quadrato 60x60°, non dimmerabile, IP65 per uso esterno. Progettato per sostituire lampade a ioduri metallici/HID/HPS da 2500 W in applicazioni industriali e aree ampie.

Caratteristiche
  • LED Philips Lumileds per uscita lumen stabile
  • Driver LED Meanwell HLG-1000H
  • Non dimmerabile per controllo semplificato
  • Involucro con grado IP65 per installazioni esterne
  • Fascio 60x60° quadrato tramite design a doppia lente/PCB
  • Elevata emissione luminosa adatta a sostituire 2500 W metal halide/HID/HPS


Specifiche prodotto (tabella)
Product SKU : JNFL25-1800S-5000-A4-ND
System Power : 1800 W
Power Consumption : 1700 W
Input Voltage : 100-305 V
Total Lumens Output : 211000 lm
Color Temperature : 5000 K (bianco freddo)
Beam Angle (°) : 60x60°
IP Rating : IP65
LED Type : Philips Lumileds
LED Driver Brand : Meanwell HLG-1000H
CRI : >70
Power Factor : >0.95
IK Rating : IK07
Dimming Capability : Non-dimmable
Number of LED Modules : 1 module
Fixture Dimensions (HxLxW) : 161 mm x 788 mm x 665 mm
Product Weight : 42 kg
Warranty Period : 5 years
Lifespan : 50,000 hours
Operating Temp Range : -20°C to 45°C
Operating Humidity Range : 10%–90% RH
Mounting Type : Adjustable bracket

Imballaggio e spedizione
Net Weight (kg) : 42 kg
Export Carton Dimensions (mm) : 950 x 880 x 270
Products per Carton : 1
Export Carton Gross Weight (kg) : 41 kg

Specifiche tecniche
  • System Power: 1800 W
  • Power Consumption: 1700 W
  • Input Voltage: 100-305 V
  • LED Type: Philips Lumileds
  • LED Driver: Meanwell HLG-1000H
  • Total Lumens Output: 211000 lm
  • Colour Temperature: 5000 K (bianco freddo)
  • CRI: >70
  • Beam Angle: 60x60° (quadrato)
  • IK Rating: IK07
  • IP Rating: IP65
  • Dimming: Non-dimmable
  • Power Factor: >0.95
  • Warranty: 5 years
  • Lifespan: 50,000 hours
  • Operating Temp Range: -20°C to 45°C
  • Operating Humidity Range: 10%–90% RH
  • Mounting: Adjustable bracket
  • Fixture Dimensions (HxLxW): 161 mm x 788 mm x 665 mm
  • Product Weight: 42 kg
