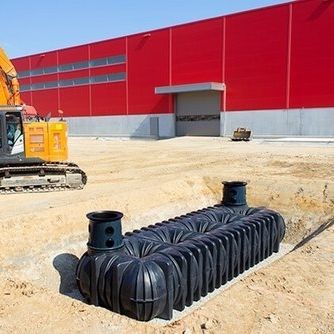

Serbatoio di recupero acque meteoriche PLATIN XXL

flessibilein plasticain acciaio inox

Detention cistern for rainwater detention and sewer relief • A detention cistern retains the rainwater and drains it into the sewer at a delayed speed. • GRAF cistern for rainwater detention and sewer relief. • To guarantee retention of rainwater, a delayed drain is fitted in the sewer with a delay of 0.05 to 16 l/sec. depending on the customer’s specifications. • In the event of heavy rainfall, the water level in the cistern rises above this level and is drained into the sewer at a delayed speed using a floating drain choke. This relieves the sewer and the treatment works. The water level can rise to the emergency overflow and sink slowly back down again after the rain. • We also construct and supply individual, special solutions. Advantages Platin XXL flat tank: • Rotating tank dome to easily align the connecting lines • Available with a second tank dome as an option • Suitable for HGV loading up to a vehicle weight of 30 t (66138 lbs) • Flexible connection up to DN 300 (12") • Connection openings with prefitted DN 150 (6") lip seals • Tank height of just 125 cm (4' 1") • High-quality, integrated DN 150 (6") filter technology • Dome opening with stainless steel profile for precision fit and secure mounting • Connection fitting of up to DN 200 (8"), on tank dome of up to DN 300 Scope of supply: • Platin XXL flat tank • Detention set: floating choke drain, outlet fittings with emergency overflow, DN 100 (4") connection Not included in the scope of supply: • Matching cover • Installation of optional Platin XL/XXL detention/retention filter package 2 Low installation depth The minimal installation depth saves you time and money during installation.
